CENTER LOGiX - Location Information

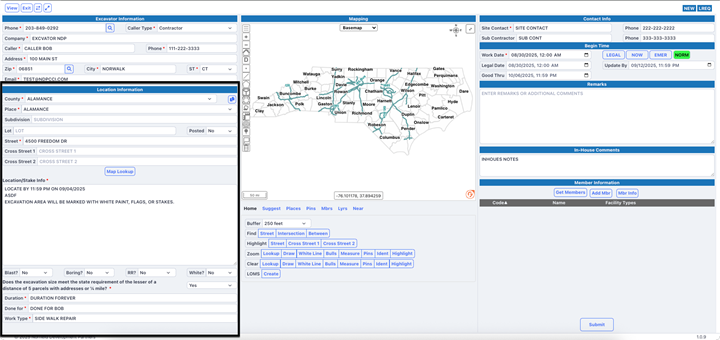

Location Information

• County and Place – Required for jurisdiction. If unincorporated, place defaults to county.
• Subdivision / Lot Numbers – Capture precise development data. No more than 5 adjoining lots or ¼ mile per ticket.
• Street and Cross Streets – Main location of work; up to two cross streets for accuracy. If no street name exists, enter “UNKNOWN” and describe directions in Locate Info.
• Sub-division -  planned development where a large tract of land is divided into individual lots for residential construction,
• Lot – A plot of land
• Locate/Stake Info Box – Clear description of work area (e.g., “Locate front yard between house and street, both sides of driveway”).
• Blasting / Boring / Railroad / White-Lining – Required yes/no questions.
• Size Requirement – Confirms whether area is ≤ 5 parcels or ¼ mile.
• Duration- how long the excavation will occur
• Work Type and Done For – Specific excavation activity and beneficiary of the work.

Context: Law requires excavators to clearly describe or white-line the work area. White-lining is mandatory if the caller cannot provide a clear description.
